// Copyright May 2017 Enoch Hwang
// This is the master controller for the DS1307 Real-Time Clock (RTC) chip
// using the I2S protocol. The RTC chip is the slave
// This code uses the Wire.h library

// Connections:

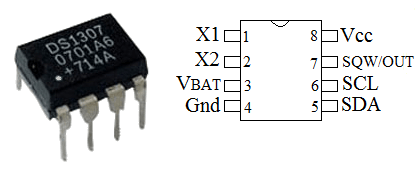

// DS1307     Arduino             Description
// pin 1 and 2                    32.768kHz crystal
// pin 3                          (optional) connect to battery +3v. connect to GND if no battery
// pin 4                          connect to GND
// pin 5 SDA  analog pin A4       SDA (4.7K ohm pull-up resistor between SDA and VCC)
// pin 6 SCL  analog pin A5       SCL (4.7K ohm pull-up resistor between SCL and VCC)
//                                also works without these two resistors on the Arduino Uno
//                                must use A4 and A5 because the Arduino and the Wire.h library use these for the SDA and SCL
// pin 7                          (optional) 1K ohm pull-up resistor to VCC and connect to LED+. LED- to GND thru 150 ohm resistor
// pin 8                          5V

// Datasheet http://datasheets.maximintegrated.com/en/ds/DS1307.pdf
// EH

#include <Wire.h>
const int DS1307 = 0x68;  // 7-bit address of the DS1307 = 1101000

void setup() {
  Wire.begin();
  Serial.begin(9600);
  Serial.println("DS1307");

  // set and start the clock
  Wire.beginTransmission(DS1307);
  Wire.write(0x00);  // starting address of RTC registers
  Wire.write(0x30);  // seconds: 0 to 59. VERY IMPORTANT: Must write a 0 to bit7 (CH) to start the clock
  Wire.write(0x36);  // minutes: 0 to 59
  Wire.write(0x47);  // hours: 1 to 12 for 12 hour clock. For AM add 0x40; For PM add 0x60;
                     //        0 to 23 for 24 hour clock. Don't add anything for 24 hour clock
  Wire.write(0x01);  // day of week: 1 to 7 where 1 = Sunday
  Wire.write(0x16);  // date: 1 to 31
  Wire.write(0x02);  // month: 1 to 12
  Wire.write(0x14);  // year: 0 to 99
  Wire.write(0x10);  // control: 0x10 produces a 1 Hz square wave on pin 7
  Wire.endTransmission();


  // 56 bytes of battery-back SRAM from 0x08 to 0x3F
  // writing to SRAM
  Wire.beginTransmission(DS1307);
  Wire.write(0x08);  // address of first memory location to access
  Wire.write(0xDD);
  Wire.write(0xEE);
  Wire.write(0xFF);
  Wire.endTransmission();

  // reading from SRAM
  Wire.beginTransmission(DS1307);  // address of DS1307 on the I2S
  Wire.write(0x08); // address of first register to read from
  Wire.endTransmission();
  Wire.requestFrom(DS1307, 3);  // request DS1307 to send 3 bytes
  Serial.println(Wire.read(), HEX);
  Serial.println(Wire.read(), HEX);
  Serial.println(Wire.read(), HEX);

}

void loop() {
  Wire.beginTransmission(DS1307);  // address of DS1307 on the I2S
  Wire.write(0); // address of first register to read from
  Wire.endTransmission();

  Wire.requestFrom(DS1307, 7);  // request DS1307 to send 7 bytes
  byte secs = Wire.read();    // read in the 7 bytes
  byte mins = Wire.read();
  byte hrs = Wire.read();
  byte day = Wire.read();
  byte date = Wire.read();
  byte month = Wire.read();
  byte year = Wire.read();

  const char* days[] = {"Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"};
  Serial.print(days[day-1]);
  Serial.print(" ");

  if(month < 10)
    Serial.print("0");
  Serial.print(month, HEX);
  Serial.print("/");
  if(date < 10)
    Serial.print("0");
  Serial.print(date, HEX);
  Serial.print("/");
  Serial.print("20");
  Serial.print(year, HEX);
  Serial.print("  ");

  int PM=0;
  int Hour12=0;
  if(hrs >= 0x40){
    // 12 hour
    hrs = hrs - 0x40;
    Hour12 = 1;
    if(hrs >= 0x20){
      // PM
      hrs = hrs - 0x20;
      PM = 1;
    }
  }
  if(hrs < 10)
    Serial.print("0");
  Serial.print(hrs, HEX);
  Serial.print(":");
  if(mins < 10)
    Serial.print("0");
  Serial.print(mins, HEX);
  Serial.print(":");
  if(secs < 10)
    Serial.print("0");
  Serial.print(secs, HEX);
  if(Hour12){
    if(PM)
      Serial.print(" PM");
    else
      Serial.print(" AM");
  }
  Serial.println("");

  delay(1000);

}

byte decToBcd(byte val) {
  return ((val/10*16) + (val%10));
}
byte bcdToDec(byte val) {
  return ((val/16*10) + (val%16));
}

// Copyright May 2017 Enoch Hwang
// This is the master controller for the DS1307 Real-Time Clock (RTC) chip
// using the I2S protocol. The RTC chip is the slave
// This is a raw bit bang low-level code
//
// Connections:
// DS1307     Arduino             Description
// pin 1 and 2                    32.768kHz crystal
// pin 3                          (optional) connect to battery +3v. connect to GND if no battery
// pin 4                          connect to GND
// pin 5 SDA  analog pin A4       SDA (4.7K ohm pull-up resistor between SDA and VCC)
// pin 6 SCL  analog pin A5       SCL (4.7K ohm pull-up resistor between SCL and VCC)
//                                must use one of the analog pins. the digital pins won't work
// pin 7                          (optional) 1K ohm pull-up resistor to VCC and connect to LED+. LED- to GND thru 150 ohm resistor
// pin 8                          5V
//
// for debugging:
// SDA connected to VCC will display 255:255:255
// SDA connected to GND or no connection will display 0:0:0
// sometimes need to wiggle the SDA wire to get it to work

#define SDA A4
#define SCL A5
const byte DS1307_ADDR_R = 0xD1;  // the DS1307 7-bit address 1101000 with READ  bit (1) = 11010001 = D1
const byte DS1307_ADDR_W = 0xD0;  // the DS1307 7-bit address 1101000 with WRITE bit (0) = 11010000 = D0

void sendStart(byte addr) {
  pinMode(SDA, OUTPUT);
  digitalWrite(SDA, HIGH);
  digitalWrite(SCL, HIGH);
  digitalWrite(SDA, LOW);

  // send out the 8 bits
  for (int i=7; i>=0; i--) {
    digitalWrite(SCL, LOW);
    digitalWrite(SDA, bitRead(addr,i));
    digitalWrite(SCL, HIGH);
  }
  digitalWrite(SCL, LOW); // must have this last LOW
}

/*
void sendStart(byte addr) {
  pinMode(SDA, OUTPUT);
  digitalWrite(SDA, HIGH);
  digitalWrite(SCL, HIGH);
  digitalWrite(SDA, LOW);

  // send out the 8 bits
  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,7));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,6));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,5));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,4));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,3));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,2));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,1));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW);
  digitalWrite(SDA, bitRead(addr,0));
  digitalWrite(SCL, HIGH);

  digitalWrite(SCL, LOW); // must have this last LOW
}
*/

// this also works using the shiftOut command
void sendStart_works(byte addr) {
  pinMode(SDA, OUTPUT);
  digitalWrite(SDA, HIGH);
  digitalWrite(SCL, HIGH);
  digitalWrite(SDA, LOW);
  digitalWrite(SCL, LOW);
  shiftOut(SDA, SCL, MSBFIRST, addr);   // send out the 8 bits
}

void sendStop() {
  pinMode(SDA, OUTPUT);
  digitalWrite(SDA, LOW);
  digitalWrite(SCL, HIGH);
  digitalWrite(SDA, HIGH);
  pinMode(SDA, INPUT);
}

void sendNack() {
  pinMode(SDA, OUTPUT);
  digitalWrite(SCL, LOW);
  digitalWrite(SDA, HIGH);
  digitalWrite(SCL, HIGH);
  digitalWrite(SCL, LOW);
  pinMode(SDA, INPUT);
}

void sendAck() {
  pinMode(SDA, OUTPUT);
  digitalWrite(SCL, LOW);
  digitalWrite(SDA, LOW);
  digitalWrite(SCL, HIGH);
  digitalWrite(SCL, LOW);
  pinMode(SDA, INPUT);
}

byte waitForAck() {
  pinMode(SDA, INPUT);
  digitalWrite(SCL, HIGH);
  byte ack = digitalRead(SDA);  //ACK bit should be LOW
  digitalWrite(SCL, LOW);
  return ack;
}

byte readByte() {
  pinMode(SDA, INPUT);
  byte value = 0;
  byte currentBit = 0;

  for (int i = 0; i < 8; ++i) {
    digitalWrite(SCL, HIGH);
    currentBit = digitalRead(SDA);
    value |= (currentBit << 7-i);
    delayMicroseconds(1);
    digitalWrite(SCL, LOW);
  }
  return value;
}

void writeByte(byte value) {
  pinMode(SDA, OUTPUT);
  // send out the 8 bits
  for (int i=7; i>=0; i--) {
    digitalWrite(SCL, LOW);
    digitalWrite(SDA, bitRead(value,i));
    digitalWrite(SCL, HIGH);
  }
  digitalWrite(SCL, LOW); // must have this last LOW
}

// this also works using the shiftOut command
void writeByte2(byte value) {
  pinMode(SDA, OUTPUT);
  shiftOut(SDA, SCL, MSBFIRST, value);
}

byte readRegister(byte reg) {
  byte readValue=0;

  sendStart(DS1307_ADDR_W); // set write mode
  waitForAck();
  writeByte(reg);           // send register address to read from
  waitForAck();
  sendStop();
  sendStart(DS1307_ADDR_R); // change to read mode
  waitForAck();
  readValue = readByte();   // read data from register
  sendNack();
  sendStop();
  return readValue;
}

void writeRegister(byte reg, byte value) {
  sendStart(DS1307_ADDR_W);
  waitForAck();
  writeByte(reg);   // send register address
  waitForAck();
  writeByte(value); // send data to store in register
  waitForAck();
  sendStop();
}

byte decToBcd(byte val) {
  return ((val/10*16) + (val%10));
}
byte bcdToDec(byte val) {
  return ((val/16*10) + (val%16));
}

void setup() {
  Serial.begin(9600);
  Serial.println("DS1307");
  pinMode(SCL, OUTPUT);
  //pinMode(SDA, OUTPUT); // set in the low-level functions

  writeRegister(0x00,0x00); // set the seconds register
                            // note: reset bit 7 of register 0 to 0 to enable the clock
  writeRegister(0x01,decToBcd(15)); // set the minutes register
  writeRegister(0x02,decToBcd(8)); // set the hours register
  writeRegister(0x07,0x10); // set control register to enable SQW to 1Hz output
  Serial.println(readRegister(0x07));
}

void loop() {
  Serial.print(bcdToDec(readRegister(2)));
  Serial.print(":");
  Serial.print(bcdToDec(readRegister(1)));
  Serial.print(":");
  Serial.println(bcdToDec(readRegister(0)));

  delay(1000);
}

// Copyright May 2017 Enoch Hwang
// I2C Scanner
#include <Wire.h>

void setup() {
  Serial.begin(9600);
  Serial.println("I2C Scanner");

  Wire.begin();
}

void loop() {
  byte error, address;
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for(address = 1; address < 127; address++ ) {
    // The i2c_scanner uses the return value of
    // the Write.endTransmisstion to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0) {
      Serial.print("I2C device found at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
      nDevices++;
    } else if (error==4) {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

  delay(4000);           // wait 5 seconds for next scan
}
